Firefighting Rescue Hydraulic Spreader

Firefighting Rescue Hydraulic Spreader is used for emergency rescue with spreading function. for example, earthquake rescue, traffic rescue, collapse rescue, railway rescue, accident rescue, fire rescue.
Availability:
Quantity:
Firefighting Rescue Hydraulic Spreader
  • GYKZ-55-67/710

  • WINSAFE

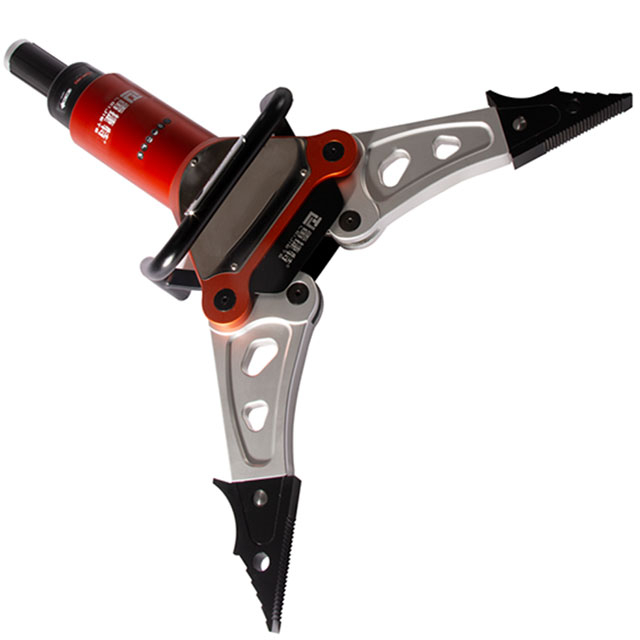

 Firefighting Rescue Hydraulic Spreader



Hydraulic-spreader-单


Hydraulic SpreaderFeatures:


1、Without hydraulic hose, single hose single connector.

2、Connector: Axis of flat, single connector, switch tools with pressure.

3、Plastic anti-slip switch control, no sticking or sticking, make the operation more accurate.

4、An integrated LED lighting system is provided at the handlebar to provide permanent lighting for rescuers.

5、Adopts a two-way hydraulic lock inside, which has a self-locking and pressure-holding function after the tool is released.

6、Equipped with a multi-functional auxiliary tool head, with functions such as tearing, pulling, opening the door, and traction. Can be replaced at will.

7、Each tool head has a unique non-slip, clamping design. Good anti-skid performance.

Hydraulic-spreader-parts

Specification


Rated Working Pressure

72MPa(720bar)

Max. Spreading Distance

710mm

Spreading Force

55-67kN

Pulling Distance

610mm

Pulling Force

>42KN

Opening/closing time without load

9-12s

Weight

17kg

Size

880×250×24mm

Accessories

Spreading tearing tool head one piece

Opening door, slitting tool head one piece
