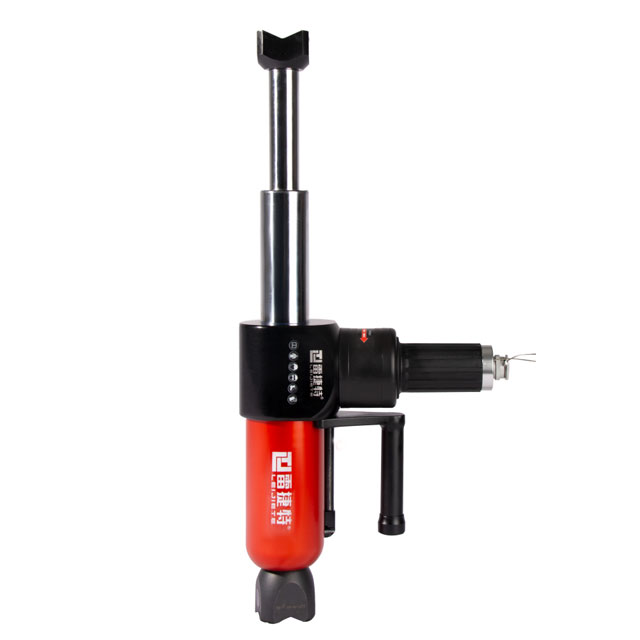

GYCD-105-200/640
WINSAFE
1、 Without hydraulic hose, single hose single connector.
2、 Connector: Axis of flat, single connector, switch tools with pressure.
3、 Plastic anti-slip switch control, no sticking or sticking, make the operation more accurate.
4、 An integrated LED lighting system is provided at the handlebar to provide permanent lighting for rescuers.
5、Adopts a two-way hydraulic lock inside, which has a self-locking and pressure-holding function after the tool is released.
6、Built-in laser positioning device at the end of the ram. It can be accurately positioned during the support operation to ensure accuracy during use.
7、The anti-skid claw structure of the ram end and ram base makes the ram safe and stable on inclined or smooth surfaces.
Rated Working Pressure | 72MPa(720bar) |
Max. extending force | 105~200KN(First stage105KN、Second stage 200KN) |
Closing length | 360mm |
Extending distance | 280mm |
Extending Scope： | 360~640mm(First stage150mm、Second stage130mm) |
Weight （without extending bar） | ≤10kg |
Size | 360×280×100mm |

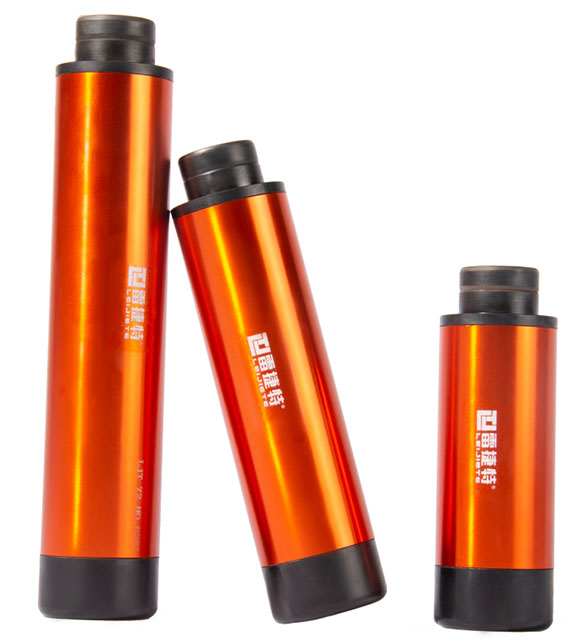

Accessories（Optional） | Extending Bar 125mm 、150mm、200mm |
