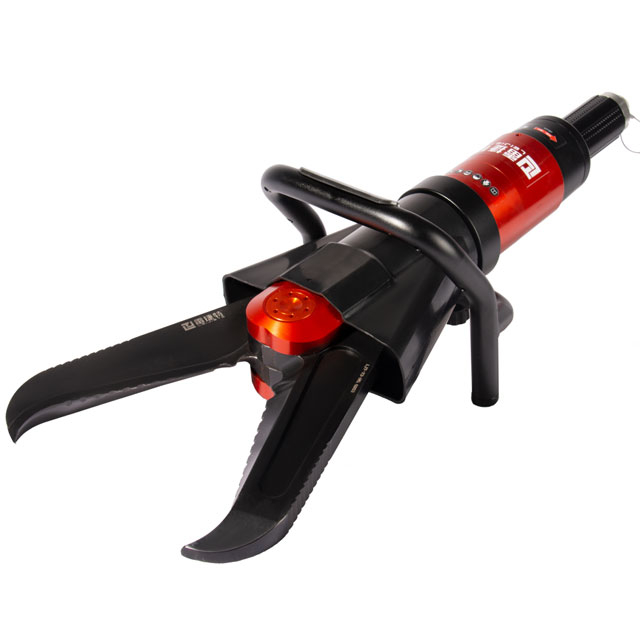

Accident Rescue Hydraulic Cutter

Accident Rescue Hydraulic Cutter is used for emergency rescue with cutter function. for example, earthquake rescue, traffic rescue, collapse rescue, railway rescue, accident rescue, fire rescue.
Availability:
Quantity:
  • GYJQ-35(16)/320

  • WINSAFE

Accident Rescue Hydraulic Cutter




Hydraulic Cutter Features:


Hydraulic-cutter

1、Without hydraulic hose, single hose single connector.

2、Connector: Axis of flat, single connector, switch tools with pressure.

3、Plastic anti-slip switch control, no sticking or sticking, make the operation more accurate.

4、An integrated LED lighting system is provided at the handlebar to provide permanent lighting for rescuers.

5、360 ° rotating manipulator design for multi-angle cutting operation, easy to operate.

6、The flat design of the center bolt can enter a narrower space for cutting rescue operations.

7、Adopts a two-way hydraulic lock inside, which has a self-locking and pressure-holding function after the tool is released.

8、The design of the eagle-blade head has a larger opening distance, which can easily wrap the A/B/C pillar of the car and perform centralized cutting operations.

9、The cutting edges are designed with double blades, no sound and splashing during cutting. Ensure the safety of users.、

10、It has the advantages of light weight, flexible performance, strong functionality, labor saving, and easy operation.


Hydraulic Cutter Specification:


Rated Working Pressure

72MPa(720bar)

Blade Opening

320mm

Cutting Force

600KN

Cutting Capacity

35mm Round steel(Q235 material)

16mm Steel plate (Q235 material)

Opening/closing time without load

8-10s

Weight

15kg

Size

780×230×230mm


WINSAFE Firefighting Technology Co.,Ltd.


Add: R.M.1533, Yayuan Business Building,Shizhong District,
        Jinan City,Shandong Province, China.
Tel&Fax:+86-88986482
Mob :+86-15606449272(English)  +86-15650073036(Español)

Email: winsafe@winsafetec.com
