How to use the line throwing gun folding stock?

Using the Line Throwing Gun Folding Stock

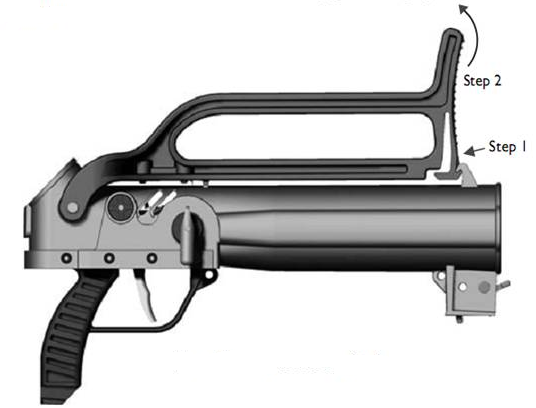

To extend the stock from the collapsed position (to the firing position) push downward at the butt of the Stock and apply pressure with your thumb on the butt to release the Stock (fig.9--Step 1). Rotate the Stock to the rear of the launcher(fig.9--Step 2). The Stock Catch Plate will automatically engage.

Figure 9. Using the Folding Stock

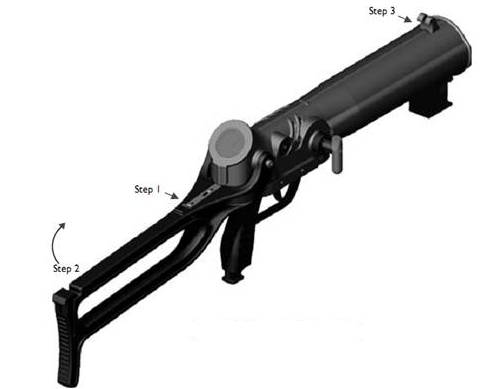

To fold the stock into the collapsed position (for use as a handle) pull back on the Stock Catch Plate with your thumb to disengage the catch (fig.10-- Step 1). Fold the stock over the top of the Barrel (fig.10-- Step 2) and engage the butt of the Stock with the sighting hook on the front of the Barrel (fig.10-- Step 3).

Figure 10. Using the Folding Stock
