Valve Key

Opening the Nozzle Valve to Pressurize the Launcher

The Valve in the Nozzle of each Projectile is intended to be opened using the Valve Key attached to the Launcher Housing. The “V” groove on the Nozzle Protector properly aligns the Nozzle Valve with the Valve Key. The Valve Key is not engaged with the Nozzle Valve when fully extended (fig.15a).  The Valve Key is engaged with the Nozzle Valve when fully depressed.(fig.15b)

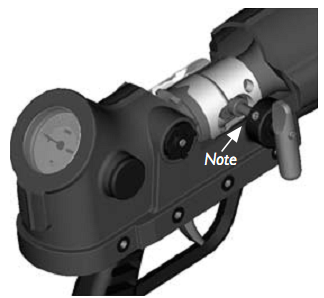

Figure 15a

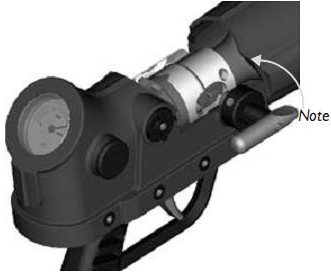

Figure 15b

When installed in the Launcher, a freshly charged Projectile will have the Nozzle Valve in the vertical position.



To OPEN the Nozzle Valve on the Projectile, do as follows;

1. Fully depress the Valve Key, in the vertical position, and maintain a constant pressure (fig.15b)



2. Rotate the Valve Key 90 degrees – in a clockwise direction (fig.15c)



3. Release the Valve Key allowing it to extend fully (fig.15d)



Figure 15c





Figure 15d

---
